Tailored Solutions for Custom Non-Standard Pipe Fittings in Diverse Industries by LPF

LPF is specialized in the custom design and fabrication of non-standard pipe fittings tailored to meet complex industrial requirements. Our engineering team adopts optimized design strategies and performs critical strength calculations to ensure performance under extreme conditions. We manufacture large-diameter pipe fittings—up to 144 inches—including specialized components such as Flow Tees, Barred Tees, Target Tees, and Hot Tapping Tees. These non-standard piping solutions are ideal for applications in oil & gas, power plants, petrochemical, and other demanding sectors.

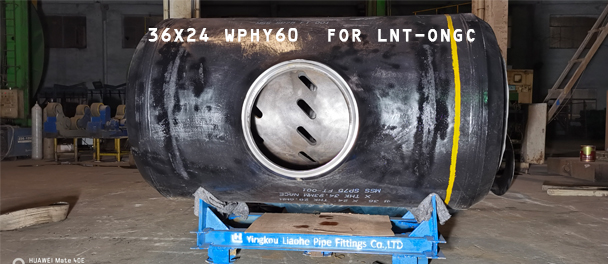

Flow Tee for Industrial Use

A method and apparatus for passing a pipeline sphere through a flow tee disposed in a pipeline whereby fluid flowing through the pipeline may selectively be flowed through at least one of the outlets of the run of the flow tee or the branch outlet of the flow tee while preventing the sphere from entering the branch outlet. A gap is formed in the run of the flow tee at its junction with the branch outlet so that fluid may pass through either the run or the branch outlet when the run is occupied by a pipeline sphere.

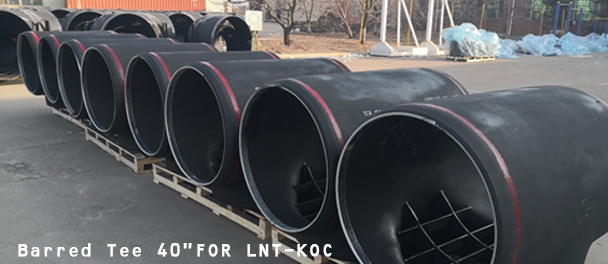

Barred Tee For Industrial Use

A barred tee is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection. Barred tee is a pipe fitting that is used in a pig launcher or receiver system in a piping system to ensure the pig could pass the branch safely.

Fabricating non-standard pipe fittings refers to the process of manufacturing or creating customized or unique items that do not conform to standard specifications or designs. It often involves producing one-of-a-kind or highly specialized products tailored to specific customer requirements. The fabrication of non-standard products typically requires a combination of creativity, engineering expertise, and specialized manufacturing techniques.

Here are the general steps involved in fabricating non-standard products:

• Design and Specification
• Engineering and Prototyping
• Material Selection
• Manufacturing Process Selection
• Fabrication
• Quality Control
• Finishing and Assembly
• Testing and Validation
• Delivery and Installation

Fabricating non-standard pipe fittings requires close collaboration between designers, engineers, and skilled technicians, as well as access to specialized manufacturing equipment and facilities. The process is highly customized and tailored to the specific requirements of each unique product, making it a challenging but rewarding endeavor.

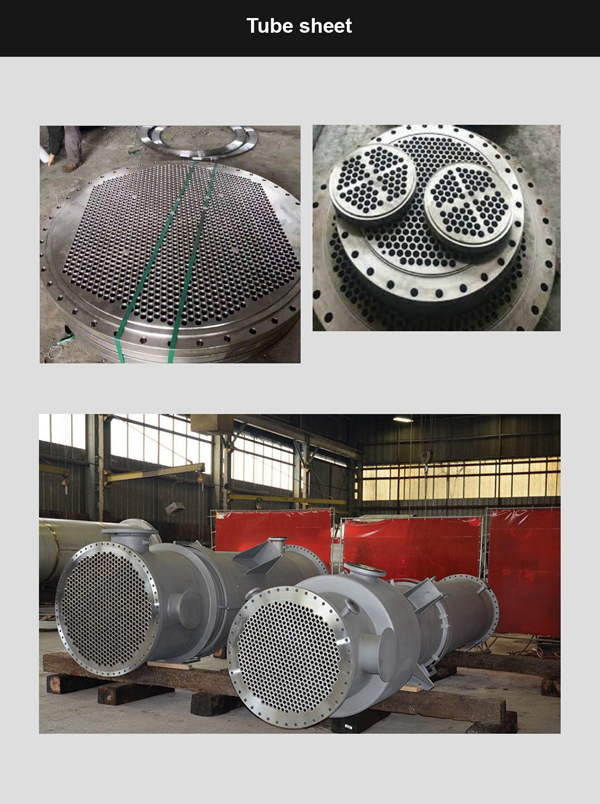

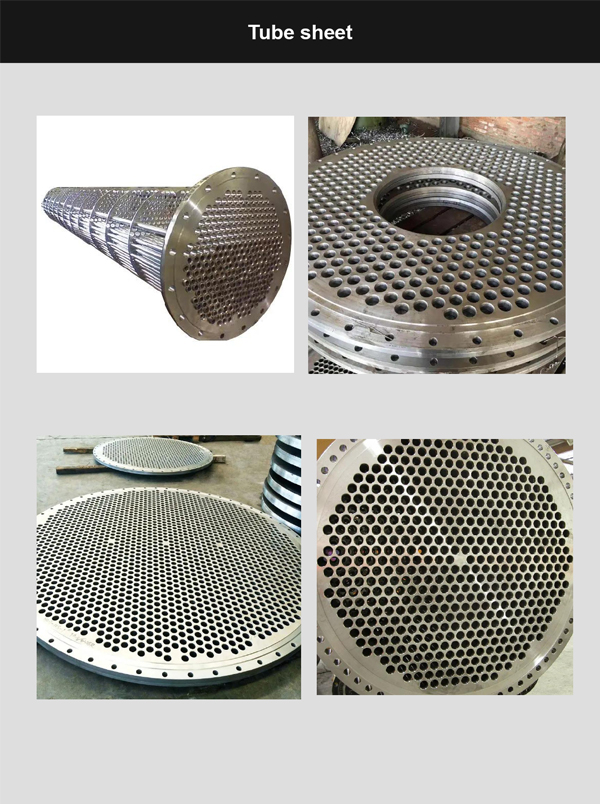

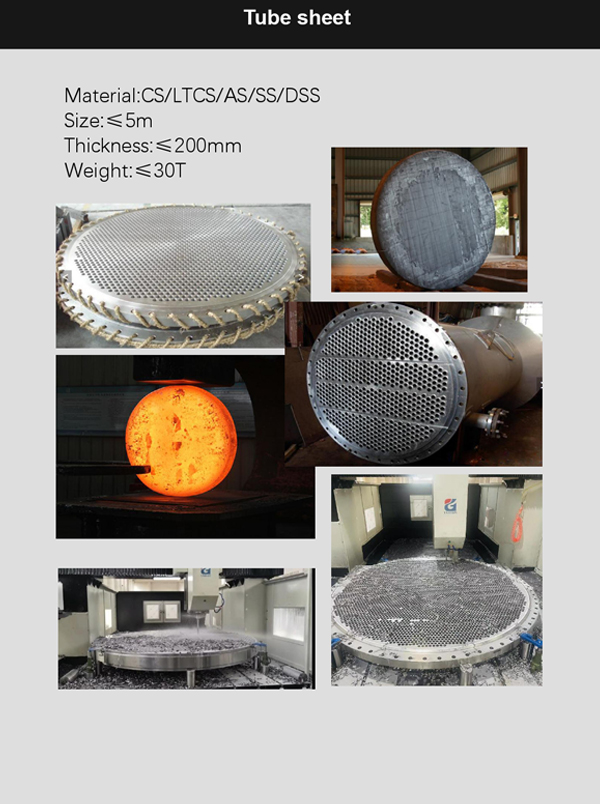

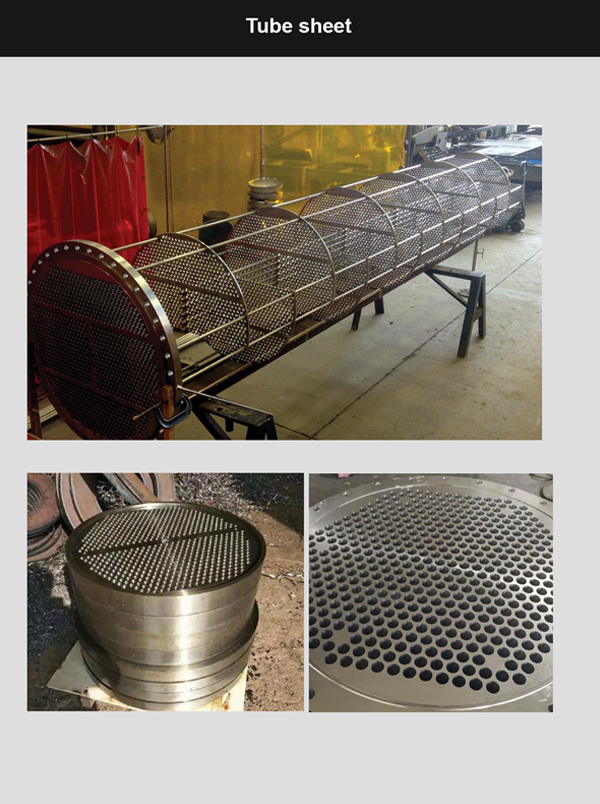

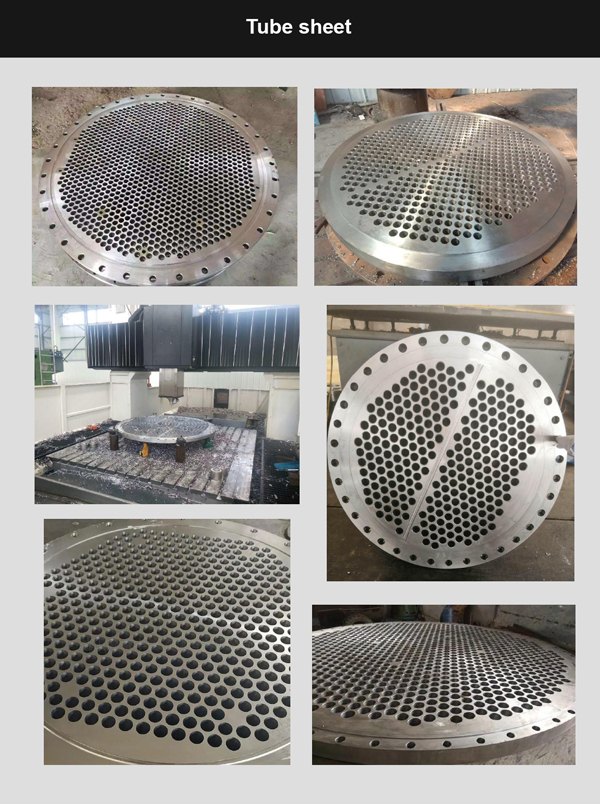

SS Tube sheets are popular in various industries due to the excellent corrosion resistance, mechanical strength, and durability offered by stainless steel. They are particularly useful in applications involving aggressive fluids, high temperatures, or environments prone to corrosion.

It is a plate-like structure that is used in heat exchangers and other types of shell-and-tube devices. It serves as a support for a series of tubes, allowing them to be securely attached and sealed.

The fabrication of an SS Tube sheet involves several steps:

• Material selection
• Design
• Machining
• Tube hole preparation
• Tube insertion and attachment
• Tube sheet sealing

SS tube sheets play a crucial role in ensuring the efficiency and reliability of heat exchangers and other equipment. Their stainless steel construction helps prevent corrosion and extends the lifespan of the equipment in various industrial applications.
